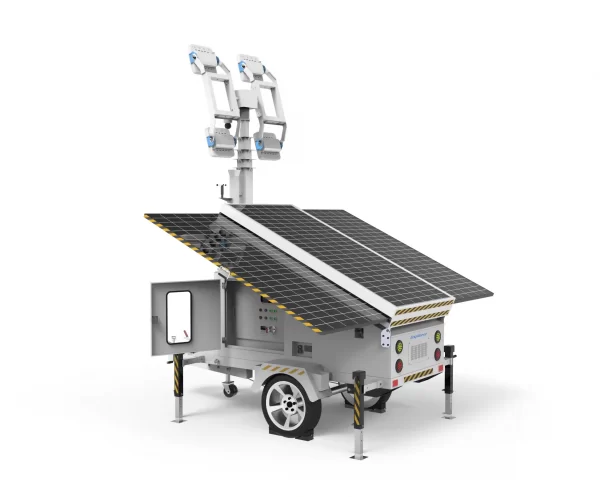

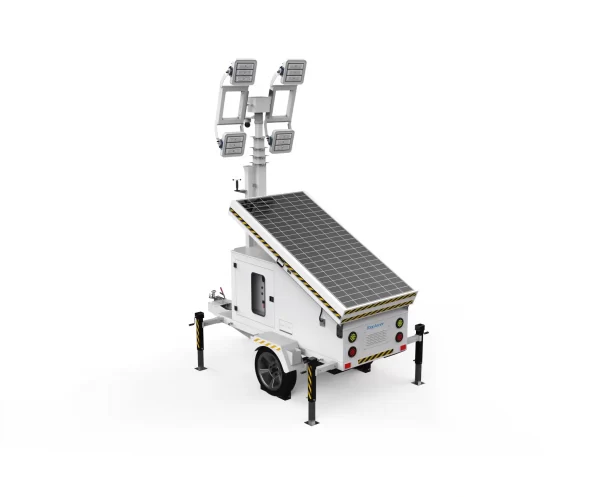

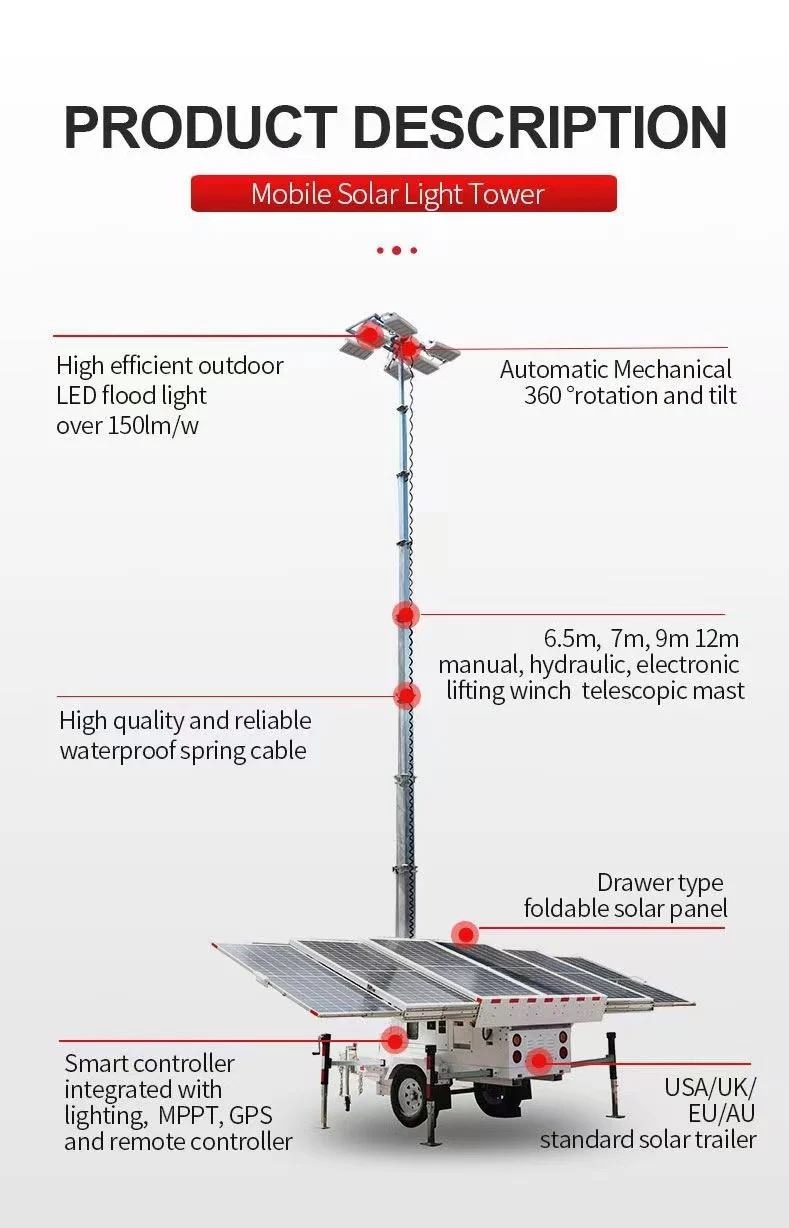

Portable Mobile Solar Powered Hydraulic Telescopic Mast LED Flood Light Tower Alux Brand

Features:

Solar Energy powered-No grid connection needed

High efficient LED light for long hours lighting

Instant On/Off for lighting, no pre-heating required.

Easy to deploy and adjust-5 min operation

CCTV survillience compatible

No extra cost in operation.

Zero emission of greenhouse gas

分类：
ALX-T600-09-9M ALX-T600-09-9M ALX-T600-09-9M
Starter Pro Ultimate
General System voltage DC 48V DC 48V DC 48V
PV Controller MPPT 40A, 95% MPPT 40A, 95% MPPT 60A, 95%
IP rating IP65 IP65 IP65
Control Remote control / LCD panel Remote control / LCD panel Remote control / LCD panel / PC
Battery charging Solar Solar / AC Charging Optional Solar / AC Charging Optional
Charging time 8 hours 8 hours 8 hours
Running time 21 hours 27 hours 30 hours
Illuminated area @ 9m 800-1100 m2 800-1100 m2 800-1100 m2
Warranty 2 years 2 years 2 years
LED Luminaire Rotation / Tilt Fixed 360° rotatable / ±90° tiltable 360° rotatable / ±90° tiltable
Beam angle 25° / 40° / 90° / 120° 25° / 40° / 90° / 120° 25° / 40° / 90° / 120°
Wattage 4 x 100W 4 x 100W 4 x 100W
Light output 66000 lm 66000 lm 66000 lm
Warranty 5 years 5 years 5 years
Certification 3C、CE、UL、TUV 3C、CE、UL、TUV 3C、CE、UL、TUV
Solar Panel Brand name LONGi LONGi LONGi
Type Monocrystalline silicon Monocrystalline silicon Monocrystalline silicon
Wattage 3 x 550W 3 x 550W 4 x 460W
Efficiency 21.70% 21.70% 21.40%
Lifespan 25 years 25 years 25 years
Certification CSA、TUV、CE、UL CSA、TUV、CE、UL CSA、TUV、CE、UL
Battery Type Lead-acid Lead-acid Lead-acid
Capacity 6 x 200 AH 6 x 200 AH 6 x 250 AH
Certification UL、CE UL、CE UL、CE
Mast Height 2.5－9 m, retractable 2.5－9 m, retractable 2.5－9 m, retractable
Control Electric Electric Electric
Wind resistance Level 8 Level 8 Level 8
Material Hot-Dip Galvanized Steel Hot-Dip Galvanized Steel Hot-Dip Galvanized Steel
Inverter Certification × UL、CE、TUV UL、CE、TUV
Output × AC 220V 16A / AC 110V 32A AC 220V 16A / AC 110V 32A
Warranty × 3 years 3 years
Output outlet × USB USB
Trailer Trailer coupler Suitable for ø50mm trailer ball Suitable for ø50mm trailer ball Suitable for ø50mm trailer ball
Lunette ring                        (alternative to trailer coupler) ø70mm ø70mm ø70mm
Speed limit 80 km/h 80 km/h 80 km/h
Handbrake √ √ √
15-inch Tire √ √ √
4 Support legs √ √ √
LCD       control     panel Power consumption √ √ √
Charging status √ √ √
Loading status √ √ √
PV voltage / current / wattage √ √ √
Error alert √ √ √
Optional Anti-theft (GPS positioning) × √ √
Surveillance × × √
Wind warning × × √
Range finder × × √
PC remote control × × √
5G base station (reserved) × × √
Packing Equipment dimensions 3300*3300*9000 mm 3300*3300*9000 mm 3300*3300*9000 mm
Packing dimensions 3300*1650*2500 mm 3300*1650*2500 mm 3300*1650*2500 mm
Weight 1500 kg 1500 kg 1600 kg
Container loading 20GP: 2 pcs，40HQ: 4pcs， 20GP: 2 pcs，40HQ: 4pcs， 20GP: 2 pcs，40HQ: 4 pcs，

\
