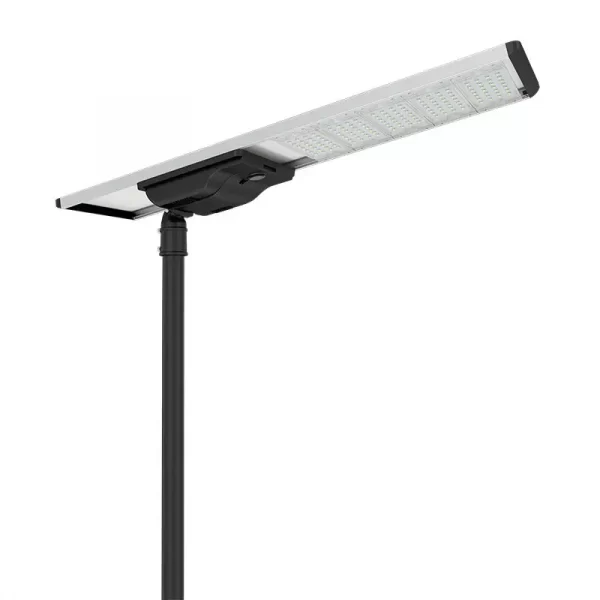

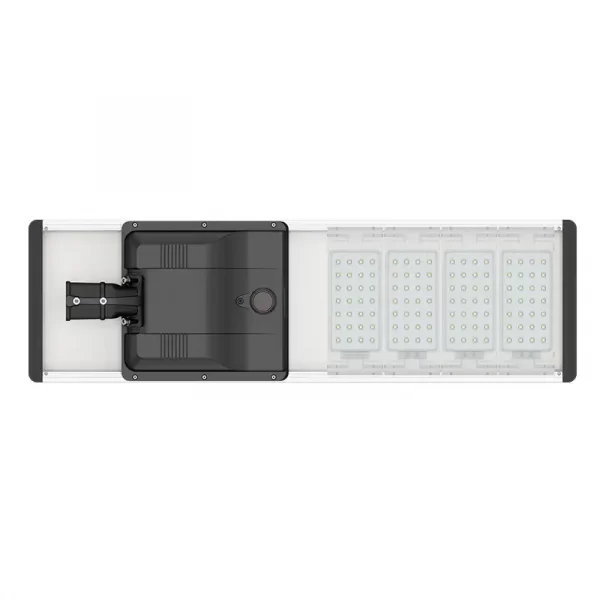

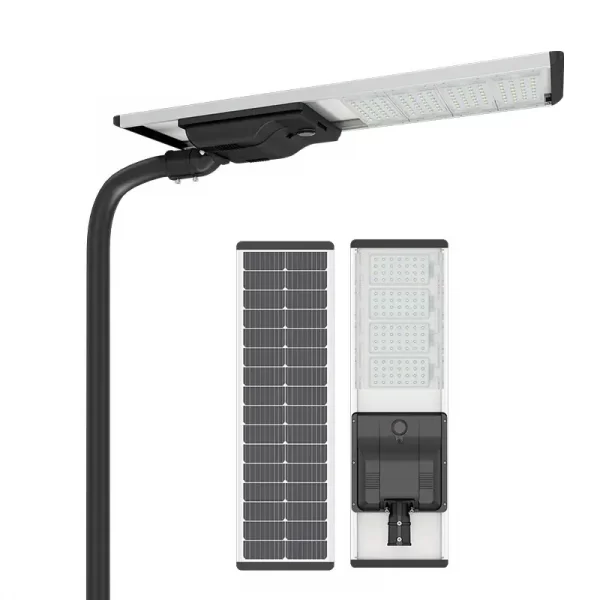

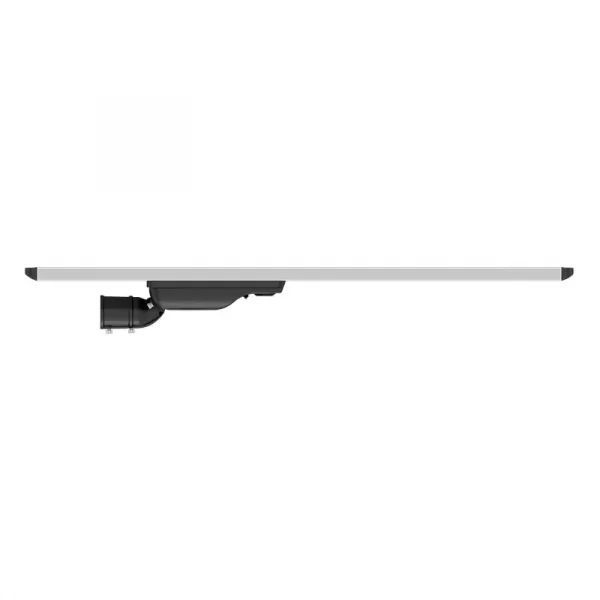

100W Integrated All in One Solar Road LED Garden Outdoor Street Light
- All-in-one design.
- Multiple installation modes are supported.
- 10-period programmable load power/time control.
- High-efficiency monocrystalline silicon solar panels with a conversion efficiency of 23%.
- Intelligent battery management, prolong the service life of lithium battery.
- Adopting MPPT intelligent controller, the charging efficiency is up to 96%.
- Microwave and human body induction control, realize intelligent power saving mode.
- Intelligent power mode, power adjustable automatically according to the battery level.
| Key attributes | |
| Industry-specific attributes | |
| Warranty(Year) | 3 years |
| Lighting solutions service | Lighting and circuitry design, DIALux evo layout |
| Other attributes | |
| Application | ROAD |
| Light Source | LED |
| Brand Name | Alux |
| Model Number | ALX-PV5-100 |
| Color Temperature(CCT) | 2700L-6500K |
| IP Rating | IP66 |
| Beam Angle(°) | Type II |
| CRI (Ra>) | 70 |
| Input Voltage(V) | 12V |
| Lamp Luminous Efficiency(lm/w) | 220 |
| Lamp Luminous Flux(lm) | 26400 |
| Working Temperature(℃) | -65 |
| Color Rendering Index(Ra) | 70 |
| Certification | EMC, RoHS, CE |
| Power Supply | Battery |
| Support Dimmer | Yes |
| Lifespan (hours) | 100000 |
| Working Time (hours) | 50000 |
| Product name | Led Solar Street Light |
| Power | 40-120W |
| LED Chip | High Bright Bridgelux |
| Working Time | 8-40 hours /5-7 days |
| Working Mode | Motion /PIR Sensor /Timer |
| Charging Mode | MPPT |
|
Model No
|
ALX-PV5-40
|
ALX-PV5-50
|
ALX-PV5-60
|
ALX-PV5-80
|
ALX-PV5-100
|
ALX-PV5-120
|
|
Efficiency
|
220LM /W
|
220LM /W
|
220LM /W
|
220LM /W
|
220LM /W
|
220LM /W
|
|
Lumen
|
8800LM
|
11000LM
|
13200LM
|
17600LM
|
22000LM
|
26400LM
|
|
PV module
|
Monocrystalline 65W
|
Monocrystalline 70W
|
Monocrystalline 70W
|
Monocrystalline 100W
|
Monocrystalline 120W
|
Monocrystalline 120W
|
|
LiFePo4 Battery
|
18AH/12.8V (230WH)
|
24AH/12.8V (307WH)
|
30AH/12.8V (384WH)
|
36AH/12.8V (461WH)
|
48AH/12.8V (615WH)
|
54AH/12.8V (691WH)
|
|
Charge Time
|
4.2 hours
|
4.8 hours
|
5.9 hours
|
5.1 hours
|
5.6 hours
|
6.3 hours
|
|
Installation Height
|
6-7m
|
6-8m
|
6-8m
|
8-9m
|
8-10m
|
9-11m
|
|
Installation Distance
|
20-28m
|
20-32m
|
20-32m
|
25-35m
|
30-40m
|
35-45m
|
|
LED Chip
|
High Bright Bridgelux
|
|||||
|
CCT
|
3000-6500K ( can be customized)
|
|||||
|
Life Span
|
L70>100, 000 hours
|
|||||
|
Working Time
|
8-40 hours /5-7 days
|
|||||
|
Working Mode
|
Motion /PIR Sensor /Timer
|
|||||
|
Charging Mode
|
MPPT
|
|||||
|
Light Distributions
|
Type II
|
|||||
|
Working Temperature
|
-15⁰C to +70⁰C
|
|||||
|
Pole diameter
|
70-76mm (suggestion)
|
|||||
|
IP Rating
|
IP66
|
|||||
|
Warranty
|
3 Years
|
|||||
