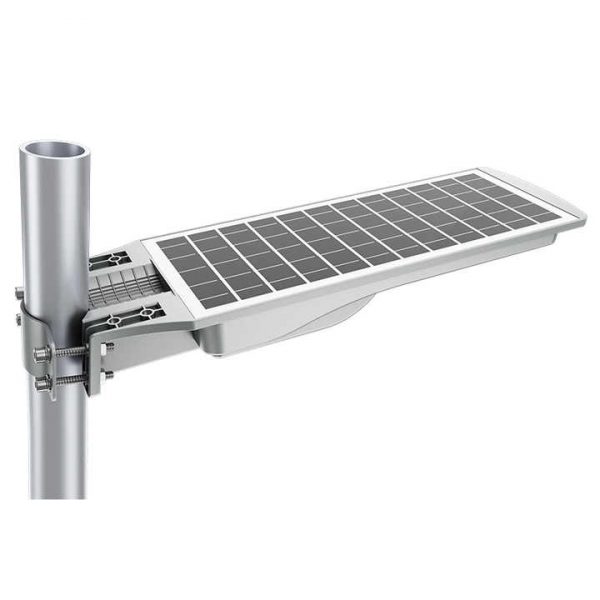

10W All-in-one Solar Road Lamp
- Power: 10W/20W
- All-in-one design
- Multiple installation modes are supported
- High efficiency MPPT controller, charging efficiency up to 92%
- Intelligent battery management, prolong the service life of lithium battery
- Microwave induction control, realize intelligent power saving mode
- Perfect protection function, Undervoltage, overcharge protection
- Infrared wireless remote control, adjust the working mode easily
| Series No | ALUX AF-10 |
| Power | 10W |
| Efficacy | 200lm/W |
| System Voltage | DC 12V |
| Battery Spec | LiFePO4 64WH |
| Solar Panel Spec | Monocrystalline 12W |
| IP Rating | IP65 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | Type I |
| Mounting Option | Post Top, Side Entry, Wall mounted |
| Warranty | 2 Years |
| Certification | CE, ROHS, LM80, TM-21 |
| Control | PIR sensor, Timer dimming, Daylight sensor |

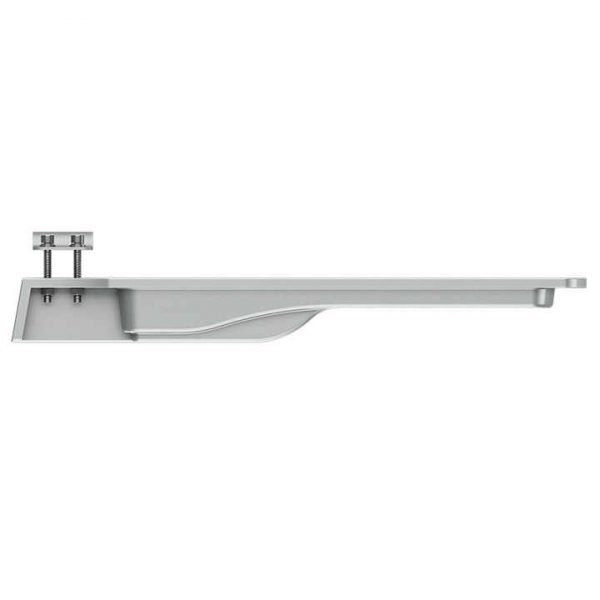

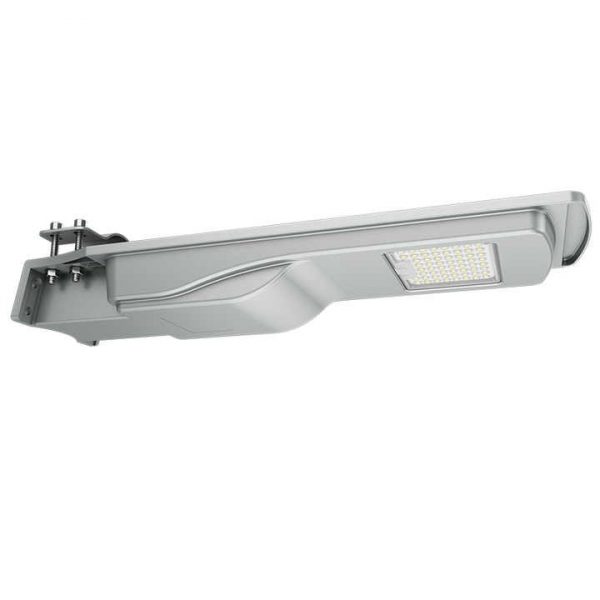

Private Design Integrated LED Solar Street Light. With a slim design and high conversion efficiency Mono-crystalline Photovoltaic Solar panel, it offers better advantages to meet customer requirements. It supports vertical, horizontal, or wall-mounted installation options, providing flexibility.
| Key attributes | |
| Industry-specific attributes | |
| Warranty(Year) | 2-Year |
| Lighting solutions service | DIALux evo layout |
| Other attributes | |
| Application | Residential |
| Light Source | LED |
| Brand Name | ALUX |
| Model Number | ALX-PV4-20 |
| Color Temperature(CCT) | 3000-6500K ( can be customized) |
| IP Rating | IP65 |
| CRI (Ra>) | 70 |
| Input Voltage(V) | DC 12V |
| Lamp Luminous Efficiency(lm/w) | 200 |
| Lamp Luminous Flux(lm) | 4000 |
| Working Temperature(℃) | 15 – 55 |
| Certification | EMC, CE |
| Power Supply | Battery |
| Support Dimmer | Yes |
| Lifespan (hours) | 50000 |
| Working Time (hours) | 50000 |
| Product Weight（kg） | 2.4 |
| Keyword | solar light |
| Power | 10W/20W |
| Material | ABS Plastic |
| Battery | LiFePO4 |
| Solar panel | Monocrystalline |
| Controller | MPPT Intelligent Controller |
| Packaging and delivery | |
| Package Type: | 1unit 577 x188 x65mm 2.4 kg 10units /ctn 630 x460 x425mm 28.6kg |
| Attribute-list | |
| Supply Ability | 50000 Piece/Pieces per Month |
